SWITCHABLE GLASS PARTITIONS

switchable-lcd-glass-partition

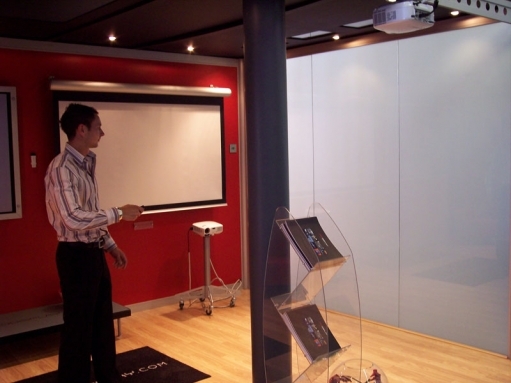

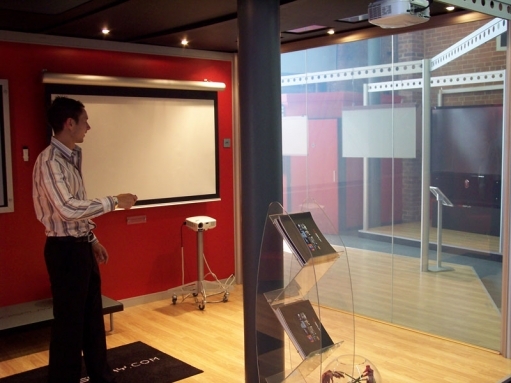

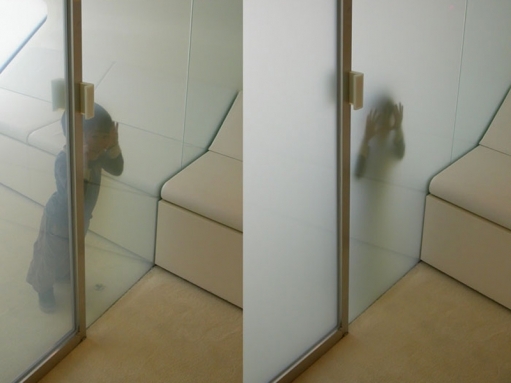

The latest generation of switchable glass provides a simple and cost effective alternative to other switchable smart glass technologies. It is manufactured by UV bonding the switchable film to one of the glass surfaces. This UV bonding process means that the film can be simply applied to any type or thickness of glass, creating a solution with optimum clarity. Another major factor is a reduction in manufacturing lead-time, making it the ideal choice for all time critical projects. A simple ON – OFF mode switches the film from being clear (transparent) to frosted (translucent). In its frosted state the film acts as an electronic blind providing privacy and security for any glass, window o r partition.

The switchable glass can be manufactured to any size with two standard widths 985mm (38.8”) and 1205mm (47.4”). Larger sizes and custom shapes are also available. Multiple panels can be joined together to create large switchable glazed walls or partitions. This unique glass technology can also be used as a high definition rear projection screen to display T V images and videos. A truly innovative product making switchable glass technology accessible to everyone while giving your home or business the added WOW factor.

Benefits of using Switchable Glass in the home

  • Switches from clear to frosted
  • Privacy and security
  • Rear projection screen
  • High UV protection
  • Simple and safe to use
  • Custom sizes
  • Indoor and outdoor
  • Durable and reliable

Standard thickness of our Switchable Laminate Glass is 11.5mm (plus protective trim)
Other thicknesses are available for custom applications (7.5mm and 13.5mm)
Standard panels are available using clear float glass with the option of toughened/tempered glass. Other options include – tinted glass in green, bronze or blue/grey.

Specification

  • Switchable Laminate Glass
  • Power – 110 VAC
  • Frequency 50 – 60HZ
  • Electrical current – 0.1 amperes per sq.metre
  • Power consumption – 7 watts per square metre
  • Switching – less than 1 second
  • Operation mode – (ON) transparent (OFF) translucent
  • Light transmittance – ON – 75% OFF – 67%
  • Haze coefficient – ON – 7% OFF – 87%

Recommended Applications

  • Windows and doors
  • Walls and partitions
  • Conservatories and sun rooms
  • Privacy and security glazing
  • Cabinets and furniture
  • Screens and visual displays
