EKRANY DOTYKOWE TYLNEJ PROJEKCJI

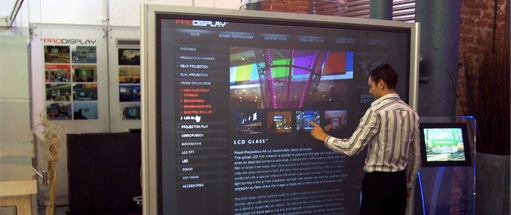

interactive-short-throw-rear-projection-screens-gallery

Pro Display realise that dynamic digital signage and visual display solutions can transform your business. Pro touch screen technology takes that theory to a whole new level, with our range of interactive rear projection screen solutions. Our core products focus on large format projected capacitance clear touch screen foils, which are combined with our range of rear projection screen technologies.

Our new range of clear interactive foils offer greater functionality and reliability than other projected capacitance foils in the market place. We use a special hard coated clear PET layer offering greater protection for the fine copper cores, improved optical characteristics and a resilient smooth surface for greater longevity. The foils are laminated directly to our range of diffusion / optical screen materials using a special PSA layer and the harden coated surface means the operator can directly touch the foil surface to activate the screen.

The screens can be either framed or suspended using our cable / rod systems.

The new improved foils have an upgraded driver with USB connection which has been digitally signed off by Microsoft (EMC approved) and are UL and CE approved (ROHS compliant).

Interactive Rear Projection Screens

Glass Screens
LCD Glass Screen / Interactive Foil – 30”, 40”, 50”, 60” and 67” (16:9)

Diffusion Screens
High Gain Screen / Interactive Foil – 30”, 40”, 50”, 60” and 67” (4:3 and 16:9)
Pro Diffusion Screen / Interactive Foil – 30”, 40”, 50”, 60” and 67” (4:3 and 16:9)
Ultra Black Screen / Interactive Foil – 30”, 40”, 50”, 60” and 67” (4:3 and 16:9)
Clearview Screen / Interactive Foil – 30”, 40”, 50”, 60” and 67” (4:3 and 16:9)

Optical Screens
Bluescreen / Interactive Foil – 30”, 40”, 50”, 60” and 67” (4:3 and 16:9)
Sunscreen / Interactive Foil – 30”, 40”, 50”, 60” (4:3) – 37” and 67” (16:9)

Custom screen sizes available upon request.

Interactive Projection Screens come complete with USB cable, software drivers, simple setup / manual, earthing cable, window sticker and installation guide.

Standard Features

  • Projected Capacitance (horizontal/vertical wires)
  • Optically clear hardened coated PET Foil
  • Accuracy – 3mm absolute, 1mm relative, no drift
  • Thru glass touch up 20mm – including gloved hands
  • Response speed – typically 50 – 100ms
  • Temperature range – better than -10º to +70º C
  • Humidity control 0 – 95percent (not affected by condensation)
  • Light transmission – 85percent+
  • USB connection (Windows based Driver)
  • UL, CE and ROHS compliant

Standard Foil – 64 wire.

New for 2008 – 128 wire with special driver and onboard processing.

Visit our download centre for product specifications, software manual and installation procedures.

Recommended Applications

  • POP / POS displays
  • Indoor kiosks
  • Information points / receptions
  • Corporate offices
  • Training / meeting rooms
  • Exhibitions / conferences
  • Museums / visitor attractions
  • Shops / shopping centres
